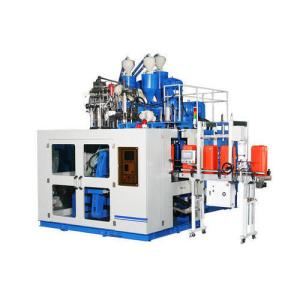

3l Bottle Plastic Extrusion Machine 4 Heating Zones

Name: 3l Bottle Plastic Extrusion Machine 4 Heating Zones
Brand: APOLLO
Price: 1 USD

Brand Name : APOLLO

Model Number : ABLB75

Certification : CE/SGS

Place of Origin : JIANGSU, CHINA

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 30 sets per month

Delivery Time : 30 working days

Packaging Details : Film packing/Carton packing/Wooden packing

Screw diameter : 75mm

Screw drive power : 22 KW

No.of heating zone : 4 zones

Oil pump drive power : 11 KW

Max.size of mold : 400X450mm

Max.die diameter : 180mm

Contact Now

ABLB75 full automatic blow molding machine is specialy design for the production of various plastic children toys in all shapes and widely materials.Mechanical-double-arm clamping system ensures mould being tightly colsed under great pressure and high temperature.
Equipment with silencer and oil system to reduce the noise and friction.
Electricity saved,energy saved and speed more faster.
The max.size for mold:400x450x300(m
For more information about the machine,please don't hesitate to contact us.

3l Bottle Plastic Extrusion Machine 4 Heating Zones

Related technical parameter(ABLB75)


Max. Product volume	8 liters	Dry cycle	800pc/h
Screw diameter	75mm	Screw L/D ratio	24 L/D
Screw drive power	22 KW	Screw heating capacity	5-6 KW
No.of heating zone	4 zones	Output of HDPE	100 KG/H
Oil pump drive power	11 KW	Clamping force	78 KN
Max.size of mold	400X450mm	Mold stroke	188-600mm
Max.die diameter	180mm	Blow pressure	0.6mpa
Air volume	0.7 M/MIN	Cooling water pressure	0.3mpa
Water consumption	60 L/MIN

PLC adds the man-machine interface, the touching type is operated, it is convenient to be simple and direct.
One pair of Iow plastification systems of Senior One, energy-efficient,mix and smelt outstandingly.
The centre enters the material, the pushing out of the mould head of many patterns, remove and make and converge the line completely, meet the demands of different structure products.
Two parallel, the mould organization of translation, the centre locks the mould, balance the strength of receiving,move rapidly, put it in place gentlely.
